Scan 2D

Imaging a sensor

To obtain the image of a sensor:

  • Use the Particular's software to do a 2D scan along the plane of the sensor without modifying the position of the optics devices along the beam axis
  • Here are some examples of a scan 2D of the Spaghetti sensor, the test sensor supplied by Particulars for testing the tct device:

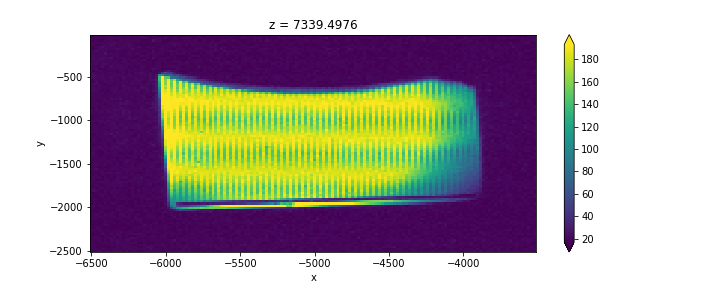

    • a complete scan of the sensor: 2d scan spaghetti diode

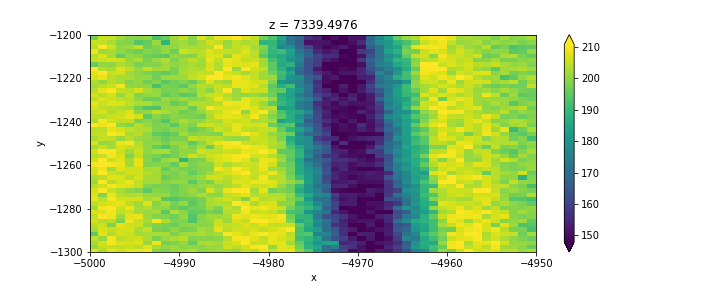

    • a scan of only a portion of the sensor: 2d scan particular
