Volage Scan

To do a voltage scan:

• We chose a position on the sensor using the image obtaneined doing a scan 2D as a reference
• We analyzed the output signal of the sensor using the Particulars' software to modify the HV value without moving the base of the tct
• To modify the HV value:
  • connect your HV generator to the computer
  • modify the value of the HV during a scan via the Particulars' software (Voltage Source 1)

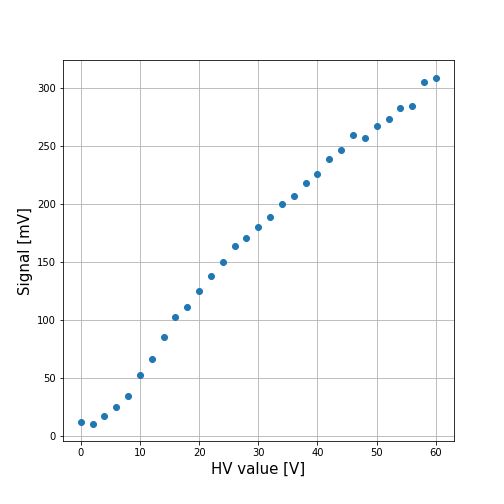

• Here is an example of a voltage scan done on the spaghetti sensor:
•
